Matrix Ejectors for Sorting Applications



BMT is authorized distributor of "Matrix S.P.A. from Italy". All Matrix Products are directly imported by our company from Matrix Production plant located in Italy. Matrix products are "MADE IN ITALY". BMT represent & promote their complete pneumatics/Ejectors product line for Color Sorting Machines, Automotive & textile industry.



One of the most demanding applications for the Matrix valves is in color sorting machines due to ultra-fast cycling of the valves during 24-hour continuous operation.



Documents for Download:

-> Matrix Main Catalog

-> Matrix brochure for Sorting & Recycling Applications.

-> Matrix Applications Overview



Matrix Products Key Applications: Sorting & Recycling Applications, Medical equipment, Robotics and industrial automation etc.

Matrix Products Key Advantages: MultiFunction, Extreme short response times, Low power consumption, High precision and repetitiveness, Long life etc.



Product Image Matrix Series # Technical Specifications Product Description Technical Document Download
890_Series
-Single valve and manifold version

-Flowrate # 100-1.530 Nl./min.
-Pressure range # 2-8 bar
-IP Rating # IP62
-Response time # 1 ms
-Tension # 24 VDC; Speed-Up
-Life time # >500 million cycles

The 890 series is a multi-valve and contains 9 individual valves with 2/2 function in NC (normally closed). Depending on the configuration one achieves a flow capacity of max. 1,530 l/min. and has up to 9 valve outlets which can be switched individually. Due to the modular design, this valve series is also excellently suited as base valve for a wide variety of output requirements.
890_Series
860_Series

-Single valve and manifold version

-Flowrate # 0.3-752 Nl./min.
-Pressure range # 0-6 bar
-IP Rating # IP52 oder IP65
-Response time # 1 ms
-Life time # >500 Millions

In a compact valve body of just 55 x 55 x 52 mm, 9 valves with 2/2 function in NC (normally closed) are combined on one pneumatic inlet/outlet. Each valve has a different nominal diameter and can be switched independently. This enables a proportional and/or linear flow rate. Two configurations are available for a 6-Bit (64 levels) or 8-Bit (256 levels) control.
860_Series
850_Series -2/2, NC
-Response time # 1/2/5 ms
-power #0.8 / 1.3 / 2.9 W
-Over # 500 mil cycles
-Flow up to # 1620 l / min
Pneumatic solenoid valves of 850 series are of the 2/2 NC type. Besides high speed features, solenoid valves of 850 series present flow rate values to 1620 dm3/min (ANR), with a supply pressure from 0 to 8 bar.
850_Series
820_Series

-Flowrate # 100-180 Nl./min.
-Pressure range # 0-8 bar
-IP Rating # IP62
-Response time # 1 ms
-Tension # 24 VDC; Speed-Up!
-Life time # >500 million cycles

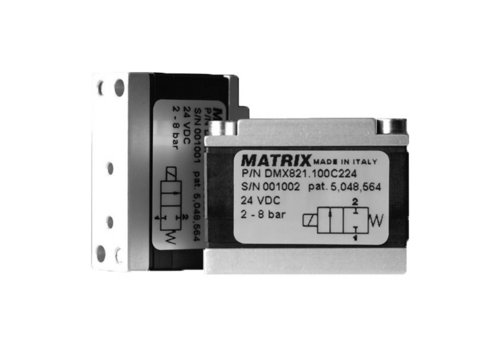

2/2 or 3/3 Function NC Single valve and manifold version. The 820 series was designed especially to create a compact 2/2 valve with high performance. Switching times of < 1 ms for the complete opening or closing phase, a flow capacity of up to 220 l/min. and a frequency of max. 500 Hz are configurable depending on the version.
820_Series
750_Series

- Single valve and manifold version

-Flowrate # 50-700 Nl./min.
-Pressure range # 0-8 bar or -vacuum # 10-5 Torr
-IP Rating # IP52 or IP65
-Response time # from 2 ms
-Tension # 12 VDC; 24 VDC; Speed-Up!
-Life time # >500 million cycles

2/2, 3/2, 3/3 or 5/2 Function in NC or NO. The 750 series combines 8 valves in one basic body and can be applied as multivalve in a wide variety of functions. Whether with overpressure or vacuum, in 2/2, 3/2, 3/3 or 5/2 function, in NC or NO version, as single module or for the multiple mounting on a manifold, this valve series can be configured accordingly. A further feature is the possibility to supply the valve with two different pressures or to combine pressure and vacuum. Among other things this enables Pick-and -Place applications with only one multi-valve.

750 Series



types



2/2 & 3/2



3/3



5/2





720_Series

-Flowrate # 50-100 Nl./min.
-Pressure range # 0-8 bar or -Vacuum # 10-5 Torr
-IP Rating # IP62
-Response time from # 2 ms
-Tension # 12 VDC; 24 VDC; Speed-Up!
-Life time # >500 million cycles

2/2 or 3/2 Function NC or NO Single valve and manifold version. The 720 series as individual or manifold mounting valve is available in a variety of variants. Whether for use with overpressure or vacuum, in 2/2 or 3/2 function, in NC or NO design, as individual valve or for mounting on a manifold, this valve can be configured accordingly. Manifolds with 4 or 8 seats are available as accessories (other versions on request). A combination of NC and NO versions enables among other things a 5/2 function.

720_Series
320_Series

-Flow rate # 30 Nl / min
-Pressure range # 0-8 bar or vacuum 10-5 Torr
-Protection class # IP52 or IP62
-Switching time # 1.5 ms
-Voltage # 24 VDC; Speed-Up!
-Lifetime # >500 million switching cycles

2/2 or 3/2 function in NC or NO Compact single valves and base plate valves. With an body dimensions of only 8x23x28mm the 2/2 and 3/2 function in NC or NO are combined. Despite the small dimension is a flow of 30 Nl./min. reached with an very low power consumption of 0.05A only. Depending on the positioning of the ports, the valve can be used in 2/2 or 3/2 function and NC or NO. This simplifies the stock holding, increases the availability and reduces costs.

320_Series
----
Electronics Driver Boards
wide range of Matrix Electronic Driver boards are available for easy control and operation of Matrix Valves.
----



Application Support

If you need any additional support in finding right Matrix Pneumatics Valves for your application, please do kindly revert us with further details, our highly skilled design team would be happy to assist you.
